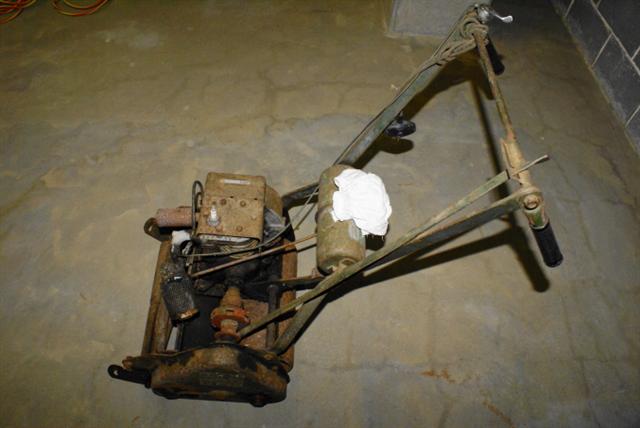

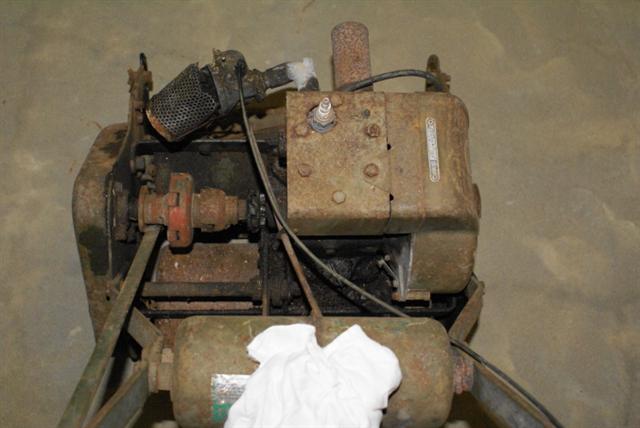

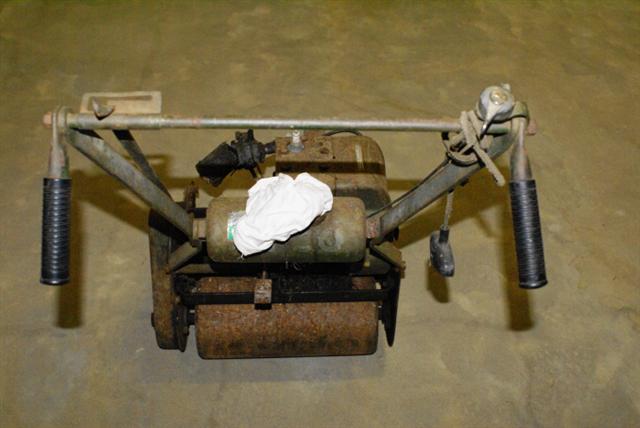

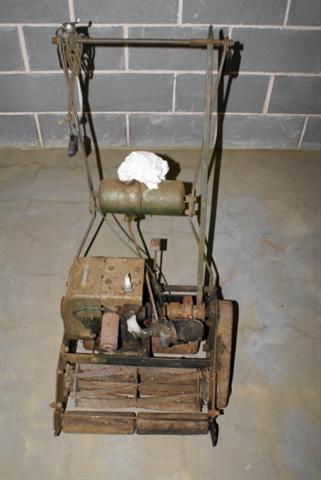

I have just acquired an old Atco 14 inch cylinder mower with a 4 stroke engine. As I'm unfamiliar with the 4 stroke variety of Atcos, and as there's no model identification plate on the mower, I'd like to try to identify this engine.
The serial number is 46C1-62423 if that helps.
(Can provide a photo if required.)
Last edited by gtc; 09/02/14 01:57 AM.
|
|
|
|
|
Joined: Jul 2005
Posts: 6,362 Likes: 10
Administrator - Master Technician
|
Hi gtc,Please post some pics for us mate, this will make it much easier for our members to help identify it for you.
Please do not PM me asking for support. Please post your questions in the appropriate forums, as the replies it may receive may help all members, not just the individual member. Kindest Regards, Darryl
|
|
|
|
|
Joined: Feb 2014
Posts: 54 Likes: 1
Trainee
|
|
|
|
|
|
|
Joined: Jul 2005
Posts: 6,362 Likes: 10
Administrator - Master Technician
|
Hi gtc, can you please post a pic of the flywheel side of the engine....and some close ups of the engine itself. Thanks mate.
Please do not PM me asking for support. Please post your questions in the appropriate forums, as the replies it may receive may help all members, not just the individual member. Kindest Regards, Darryl
|
|
|
|
|
Joined: Feb 2014
Posts: 54 Likes: 1
Trainee
|
I didn't take a pic of the flywheel side, but it's just an open pulley for rope start.
|
|
|
|
|
Joined: Jul 2005
Posts: 6,362 Likes: 10
Administrator - Master Technician
|
Hi again gtc,I would like to see the flywheel side, because I wish to see the cowling Can you please post a close up pic, and also of the engine in general....
Please do not PM me asking for support. Please post your questions in the appropriate forums, as the replies it may receive may help all members, not just the individual member. Kindest Regards, Darryl
|
|
|
|
|
Joined: May 2011
Posts: 99 Likes: 1
Atco Specialist
|
Hi GTC and ODK members,
The engine is a Villiers Mk 7 it has a 50mm bore and a 38mm stroke. They are rated at about 1.3bhp. These engines were fitted to 14, 17 and 20"(domestic)mowers. The heavy duty 20" machines were fitted with Villiers Mk 12 or Villiers 730E engines.
Cheers,
Sir Chook
|
|
|
|
|
Joined: Feb 2014
Posts: 54 Likes: 1
Trainee
|
Many thanks! Now I can consider doing a reno on the engine.
|
|
|
|
