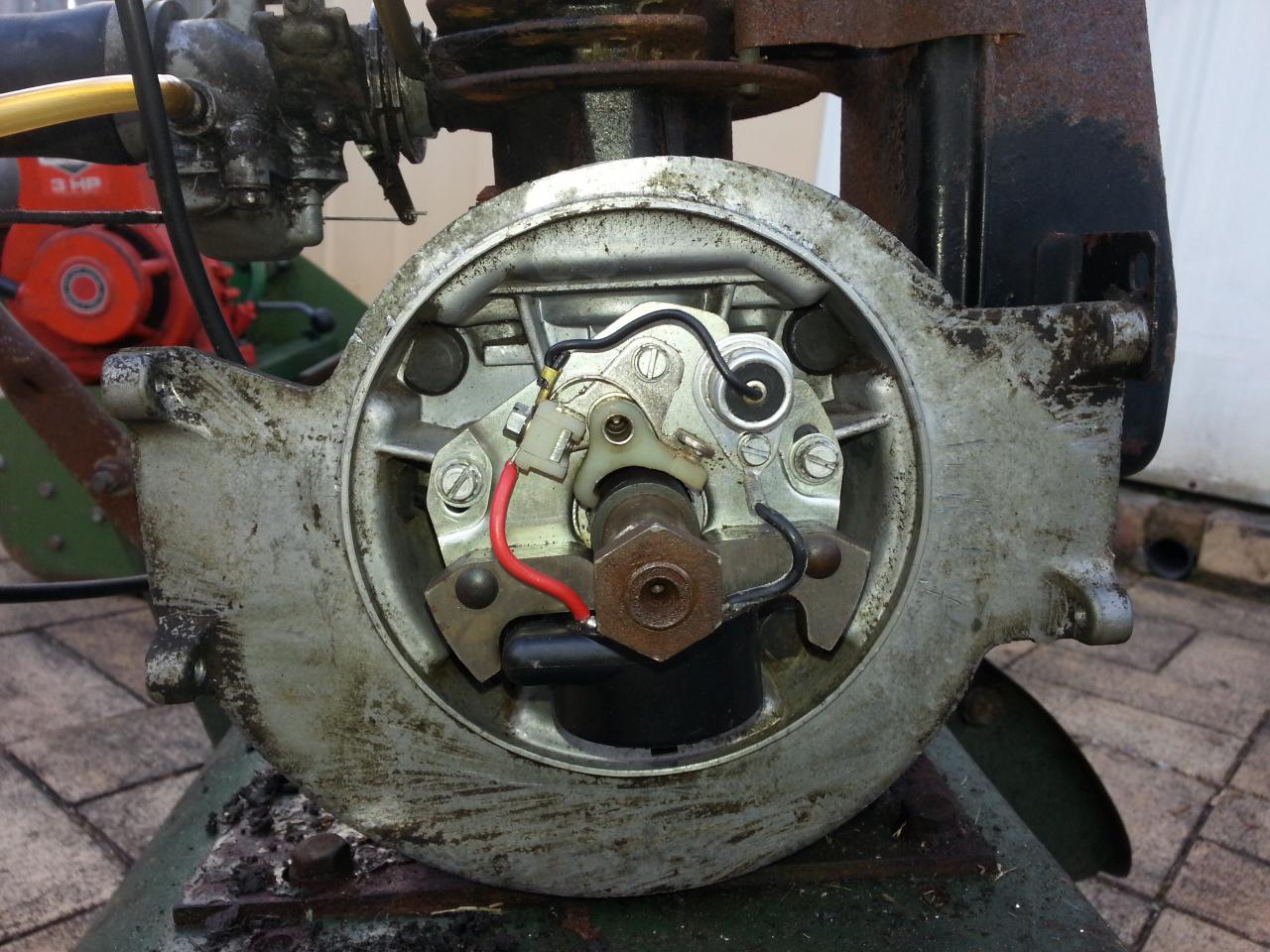

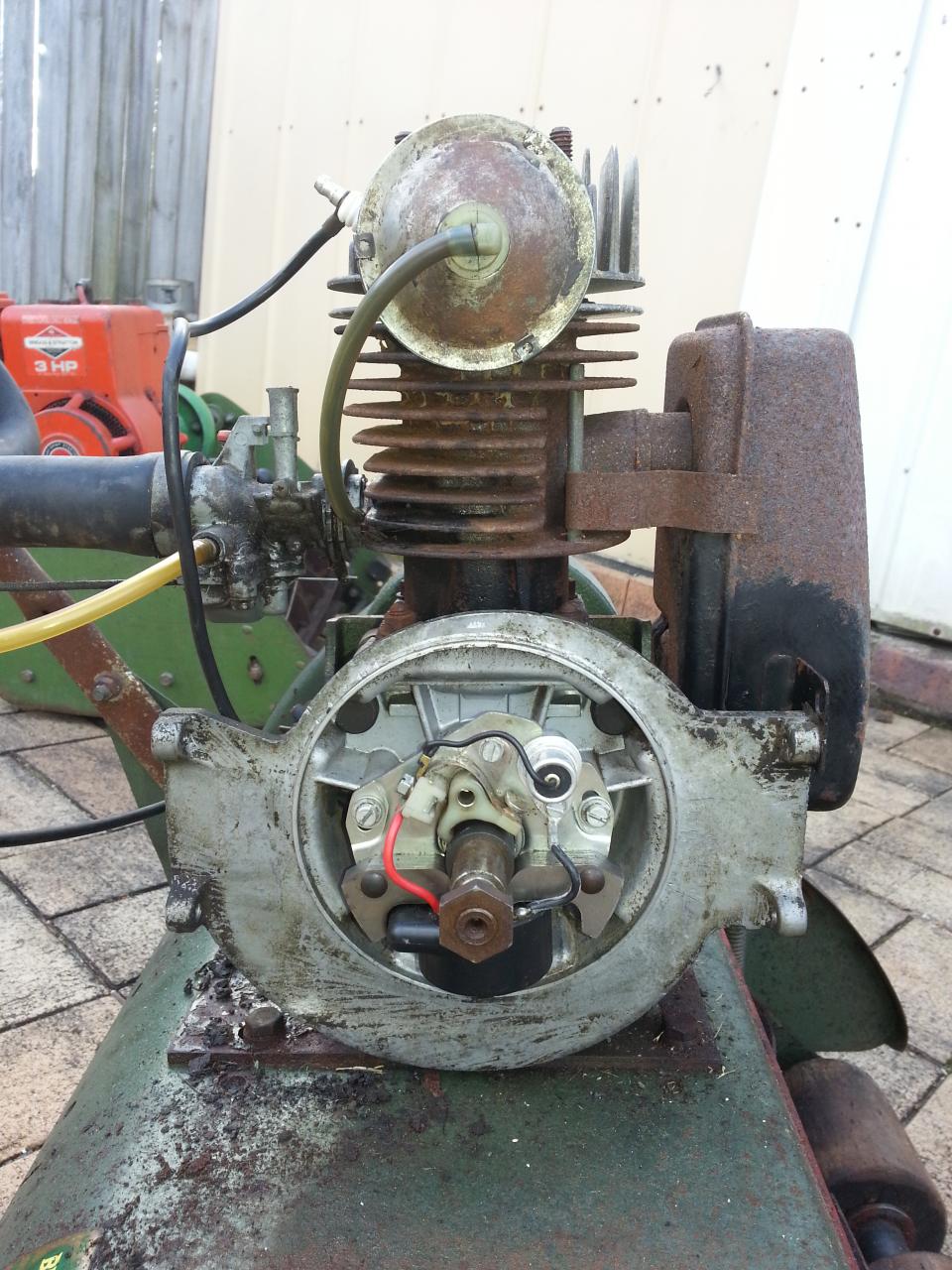

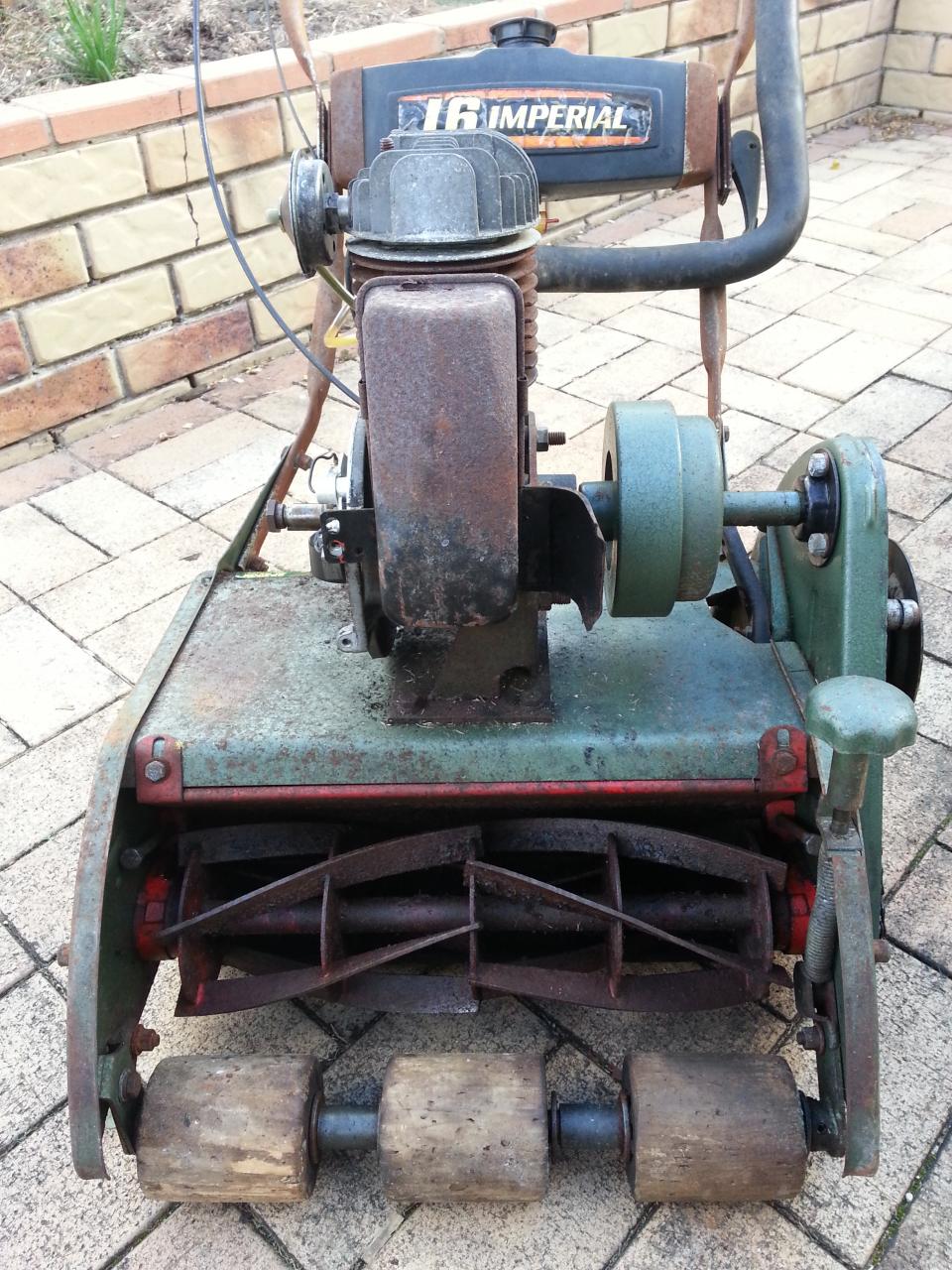

Assisting my son with a 2 stroke Victa Imperial 16. Pretty old mower sat for many years, compression is ok, carbie cleaned out, but can't get spark. Haven't had much to do with 2 strokes. here are some picks, has been pulled apart, any assistance would be appreciated.




Thanks

i cant see any gap in those points?

lots of helpful stuff regarding victa ignition here
https://www.outdoorking-forum.com.au/forum/u...amp;Main=8348&Number=46610#Post46610
and here
https://www.outdoorking-forum.com.au/forum/u...amp;Main=8118&Number=44916#Post44916

Sorry about that, didn't take the photo with the points open. Will look at the material you attached. Thanks

Took the points and condenser off, points a bit rough, will replace both this week.

New points and condenser worked like a charm, starts first pull. Where can I get info on how to adjust the blades, bit different to a SB 45.

Hello Lotusmob, Gizmo and ODK members,

Lotusmob, You have asked a question about blade adjustment.
I'm not one of the technical guys here, but I can answer that.

The Victa Imperial is, in essence, a New Zealand Morrison design.
The Morrison design was, in essence, a British Ransomes design.

All these machines had a clever reel-to-blade adjustment, simpler than a SB45.
The bolts each side of the real (inboard) are the adjusters.

Turn each bolt clockwise to decrease the reel/bottom blade gap.
Turn each bolt counter-clockwise to increase the gap.
It's as simple as that!

All very adjustable.
----------------------------------
JACK

Thanks Jack

A History Record is now available for the Victa Imperial.
https://www.outdoorking-forum.com.au/forum/ubbthreads.php?ubb=showflat&Number=72511


This topic is now Closed and Locked.
